Grid Properties: Posting

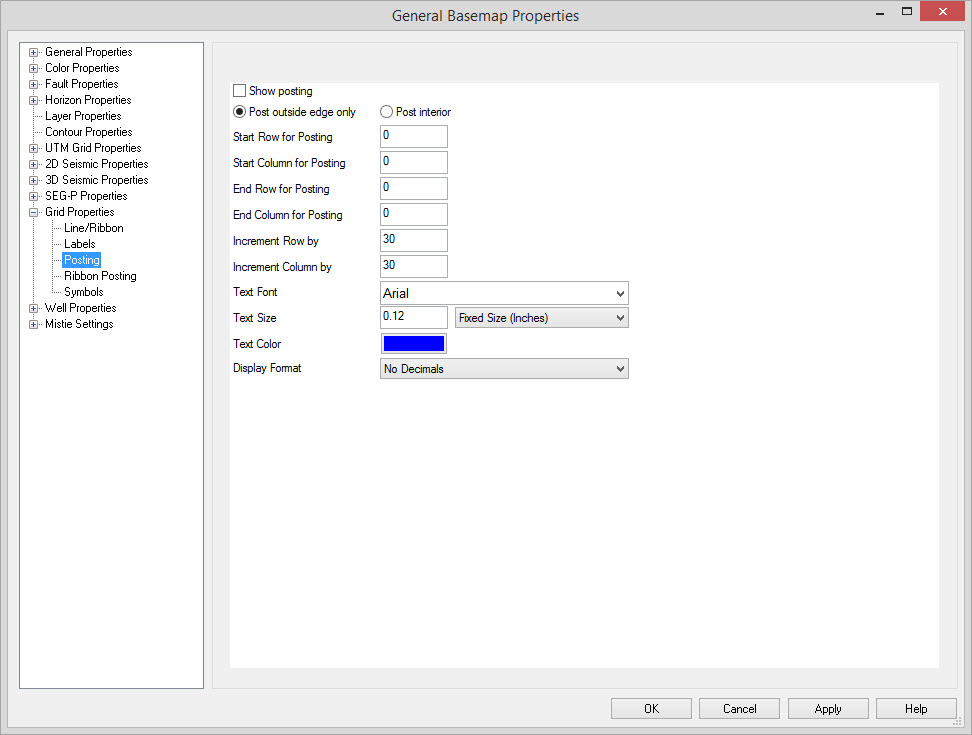

Use this page to set up the posting labeling for the grids displayed.
To define the display settings for the symbols, see the Grid Symbols page.
Enable Posting
Show Posting: Toggle on and off the posting
for grids.
Posting Parameters
Post Outside Edge Only vs Post Interior: Use
the "Post Interior" to post every bin of the entire grid displayed.
"Post Outside Edge" will only place postings on the outer edge of the
rectangle of the grid.
Start Row for Posting, Start Column for Posting/End Row for Posting, End Column for Posting/Increment Row By, Increment Column By: The starting, ending, and increment posting values for the row and column parts of a grid. It is usually best to leave the start and end at zero, as this implies to use the "start" and "end", regardless of the number of traces.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Display Format: Specify the number of decimal places to post.
Start Row for Posting, Start Column for Posting/End Row for Posting, End Column for Posting/Increment Row By, Increment Column By: The starting, ending, and increment posting values for the row and column parts of a grid. It is usually best to leave the start and end at zero, as this implies to use the "start" and "end", regardless of the number of traces.
Text Font, Text Size, Text Color: These define how the posting will appear. Select the font, specify the size, and select a color.
Display Format: Specify the number of decimal places to post.
Note: Fixed sized objects will remain the same regardless of the map scale. Variable sized objects will change size with the map scale.
